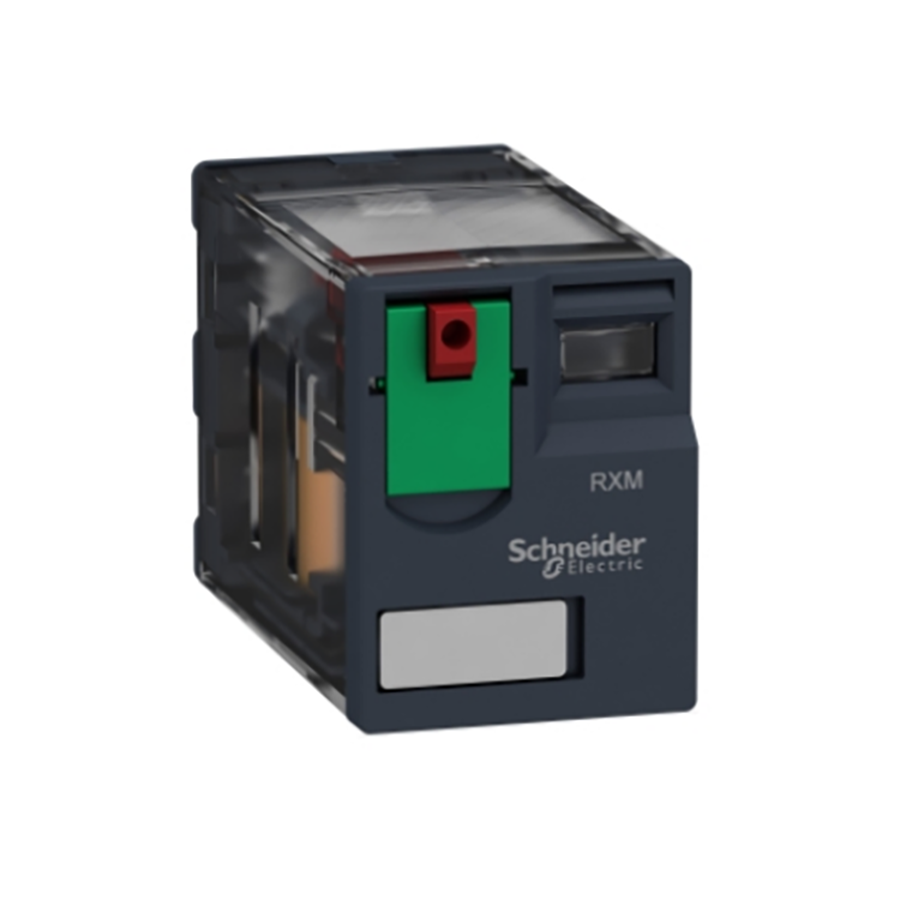

RXM4AB1U7
Manufacturer:
Schneider Electric
Mfr.Part #:
RXM4AB1U7
Datasheet:
Description:
Power Relays Socketable 13.5 mA General Purpose
| Parameter | Value |
|---|---|
| Length | 27 mm |
| Width | 21 mm |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Height | 40 mm |
| Packaging | Box |
| RoHS | Compliant |
| Features | Test Button |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Coil Current | 13.5 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 6 A |
| Termination Style | Plug In |
| Switching Voltage | 250 VAC, 28 VDC |
| Coil Voltage (AC) | 240 V |
| Must Operate Voltage | 192 V |
| Must Release Voltage | 36 V |
Stock: 5
Distributors
pcbx
pcbxUnit Price$6.43986
Ext.Price$6.43986
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.43986 | $6.43986 |
